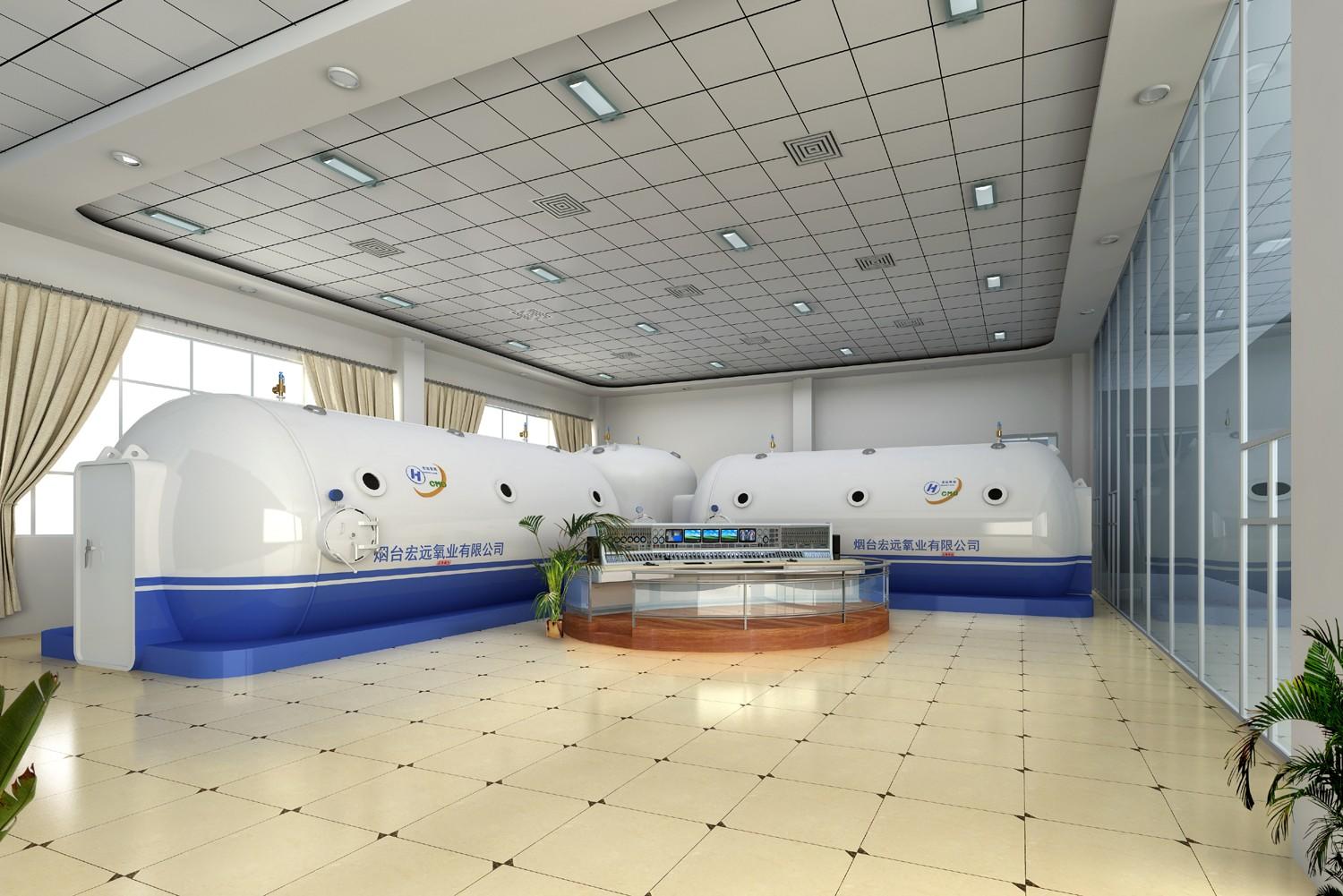

Circular Chamber Group

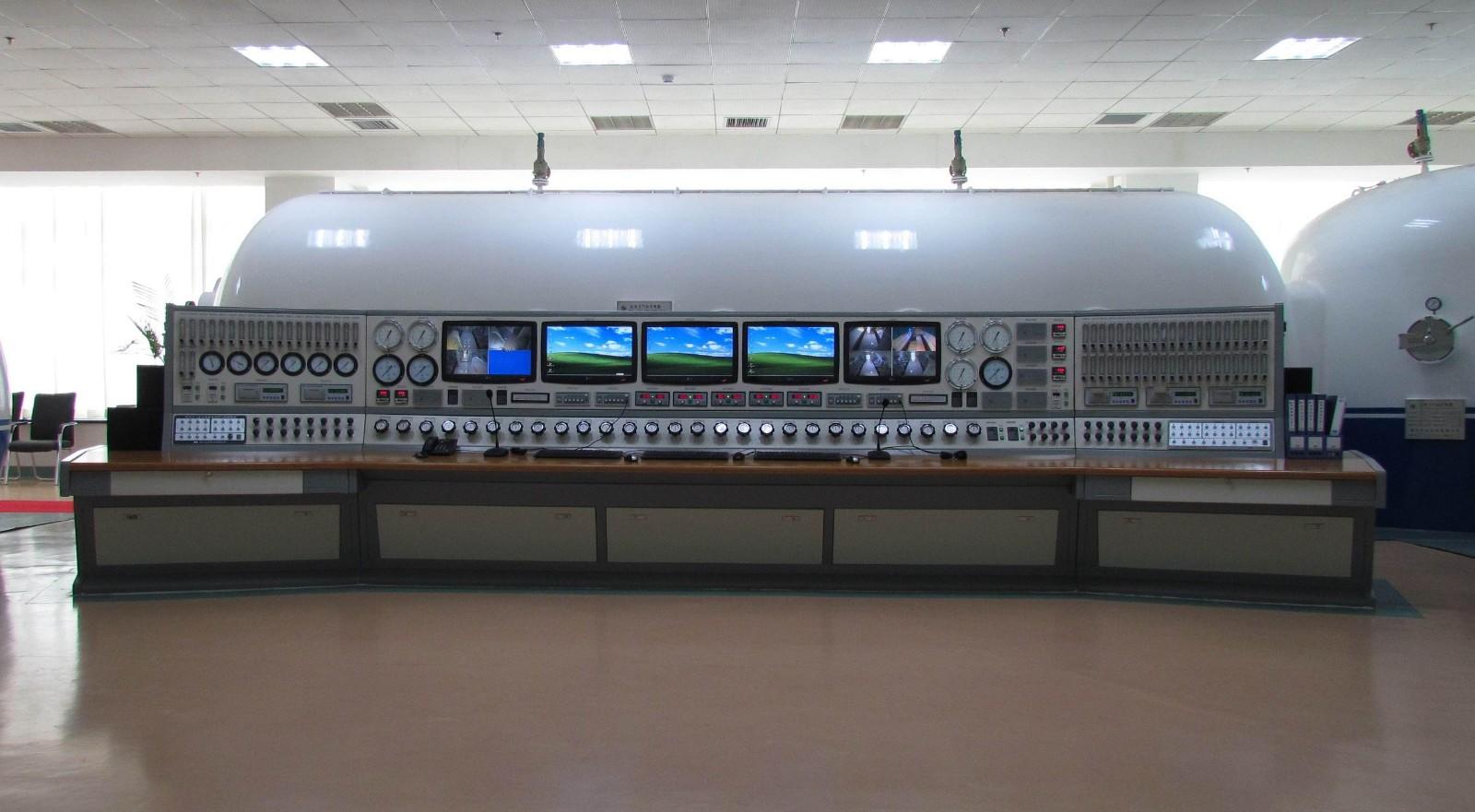

▲Operation console

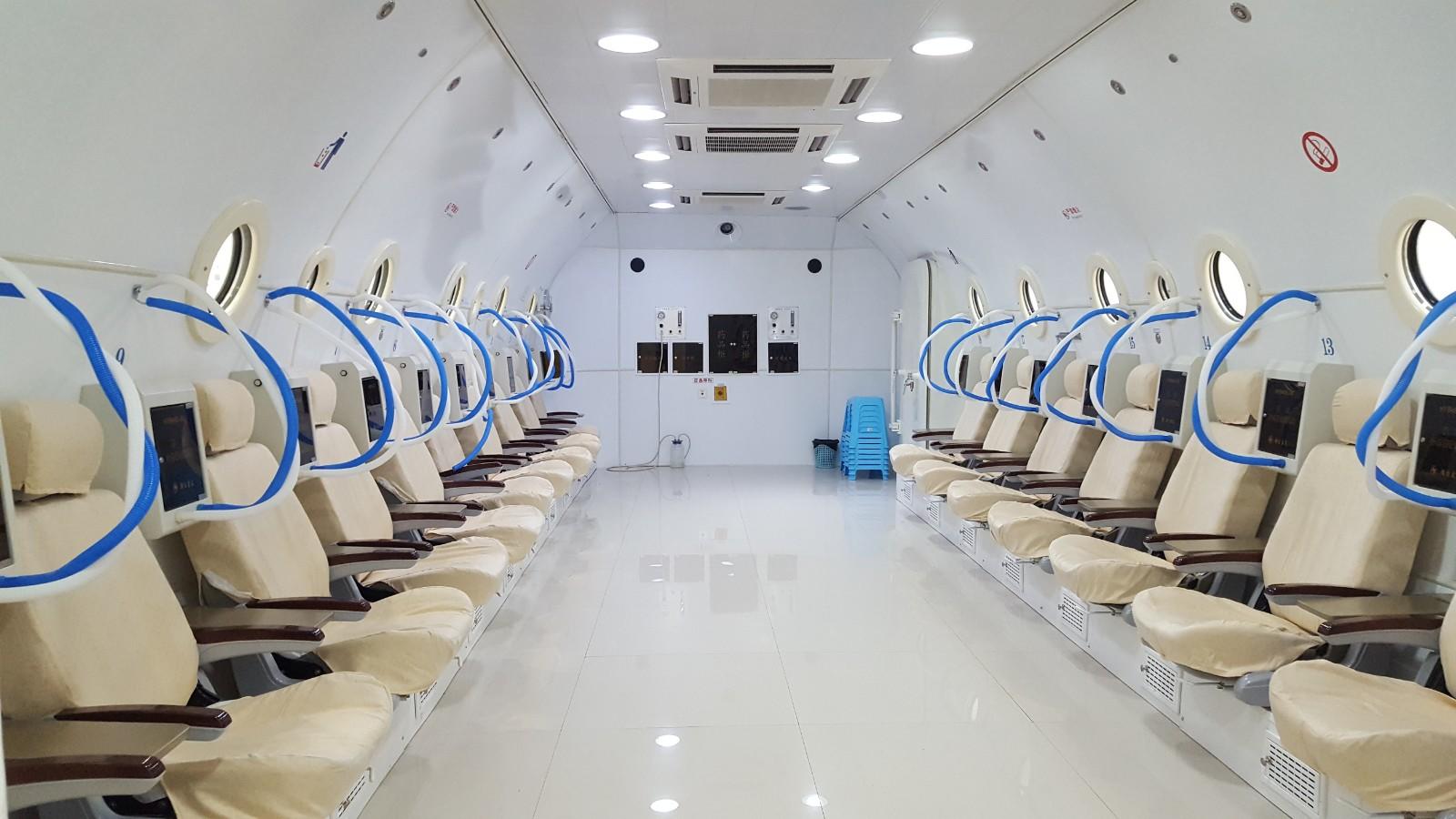

▲Chamber inner layout(conventional treatment cabin)

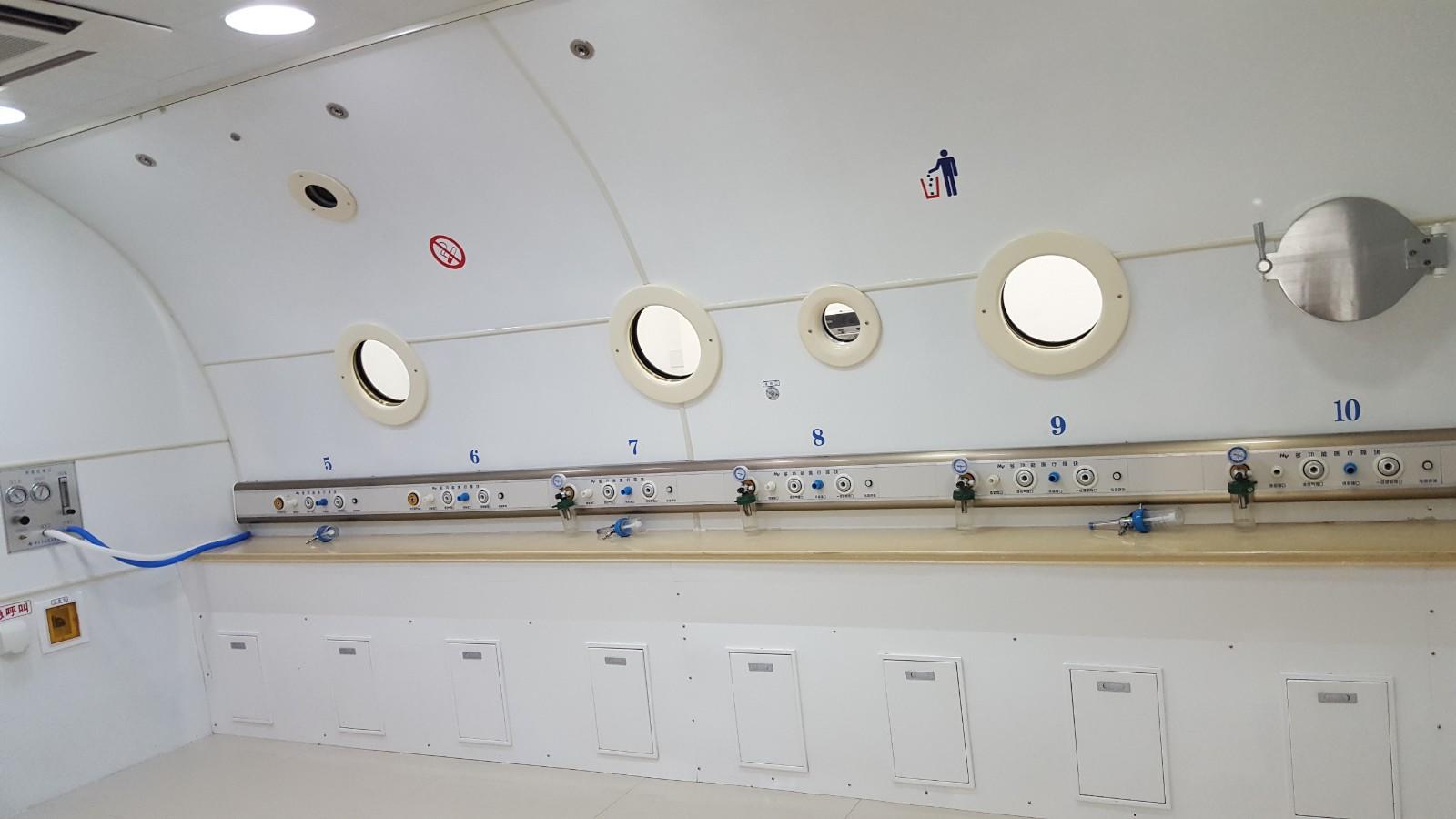

▲Chamber inner layout(critical care treatment cabin)

General technical parameter of triple-cabin Circular chamber group
Type:GY3200M2-C4GY3200M2-E3GY3400M2-F3GY3600M2-F3GY3800M2-E4
Seating capacity:26persons30persons30persons30persons30persons
Max. working pressure:0.2Mpa(3ATA)0.2Mpa(3ATA)0.2Mpa(3ATA)0.2Mpa(3ATA)0.2Mpa(3ATA)
Main cabin capacity:12persons14persons14persons14persons14persons
Assistant cabin capacity:10persons12persons12persons12persons12persons
Transition cabin capacity:4persons4persons4persons4persons4persons
Chamber diameter:φ3200mmφ3200mmφ3400mmφ3600mmφ3800mm
Chamber length:16500mm18500mm18500mm18500mm19000mm
Door:

800×1780mm

(7)

800×1780mm

(7)

800×1780mm

(7)

900×1800mm

(7)

900×1800mm

(7)

Operation method:Manual + electric + computerManual + electric + computerManual + electric + computerManual + electric + computerManual + electric + computer
Air compressor:Twin screw silent type(2)Twin screw silent type(2)Twin screw silent type(2)Twin screw silent type(2)Twin screw silent type(2)



Air Pressure Transition Chamber
