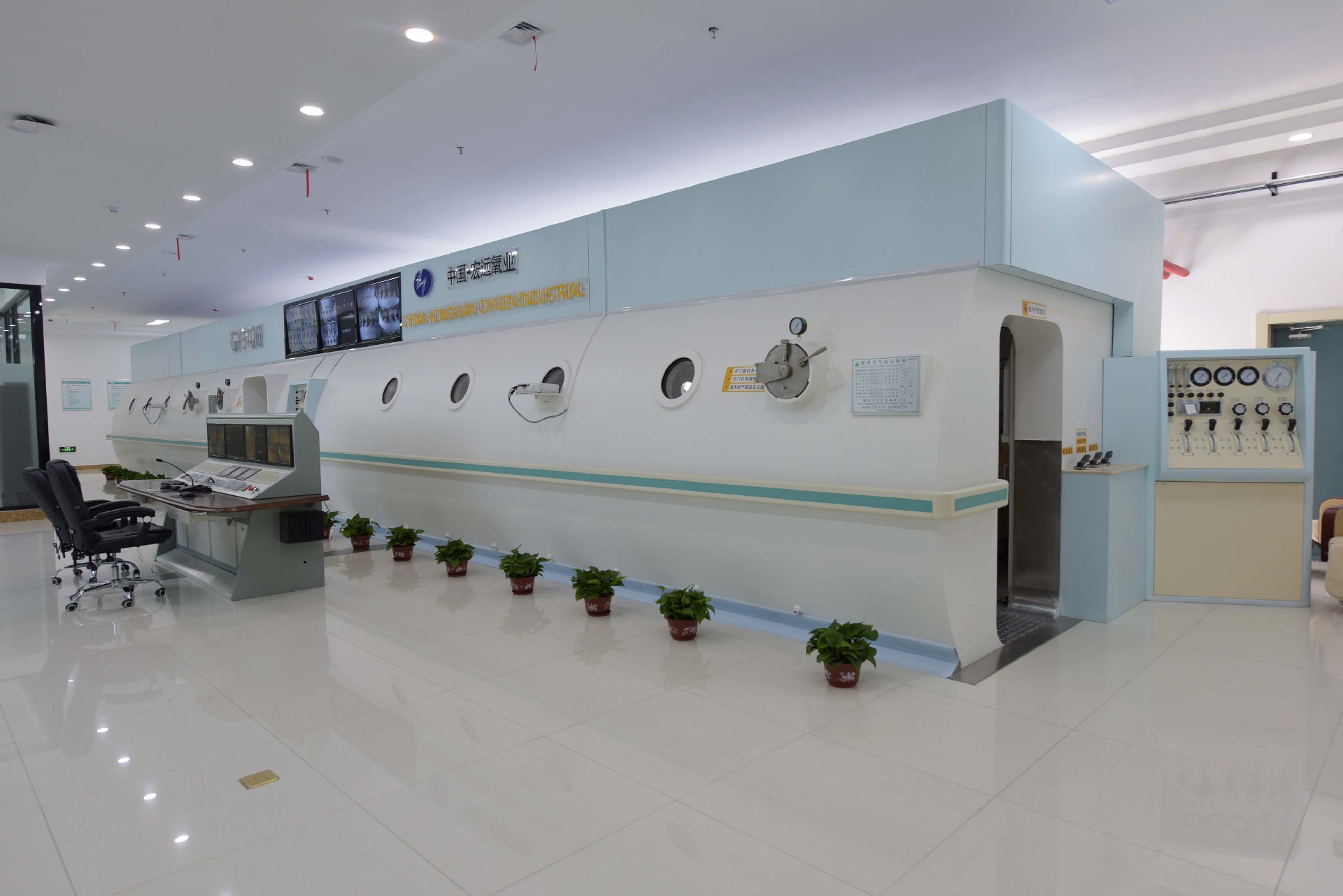

Triple-cabin omega oxygen chamber


Triple-cabin structure omega oxgen chamber,also known as the three cabins, seven doors chamber group, which is generally divided into three compartments: the conventional treatment cabin, the intensive care cabin and the transition cabin. The transition cabin can also be used as a VIP cabin. According to the different purpose of each cabin, the individualized design of inner equipment function and decoration layout can realize the effective classification and stagger the peak treatment of patients.

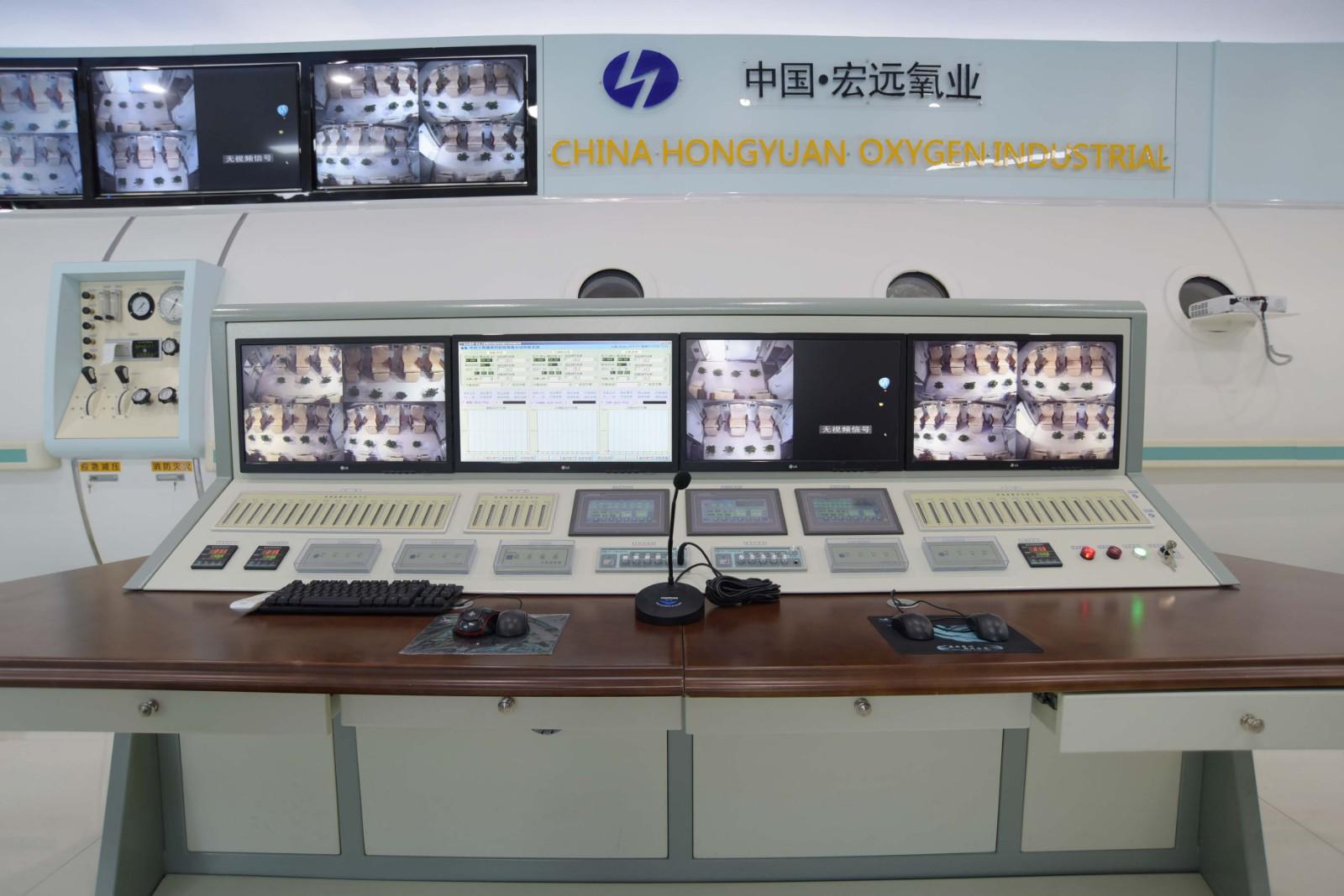

▲Operation console

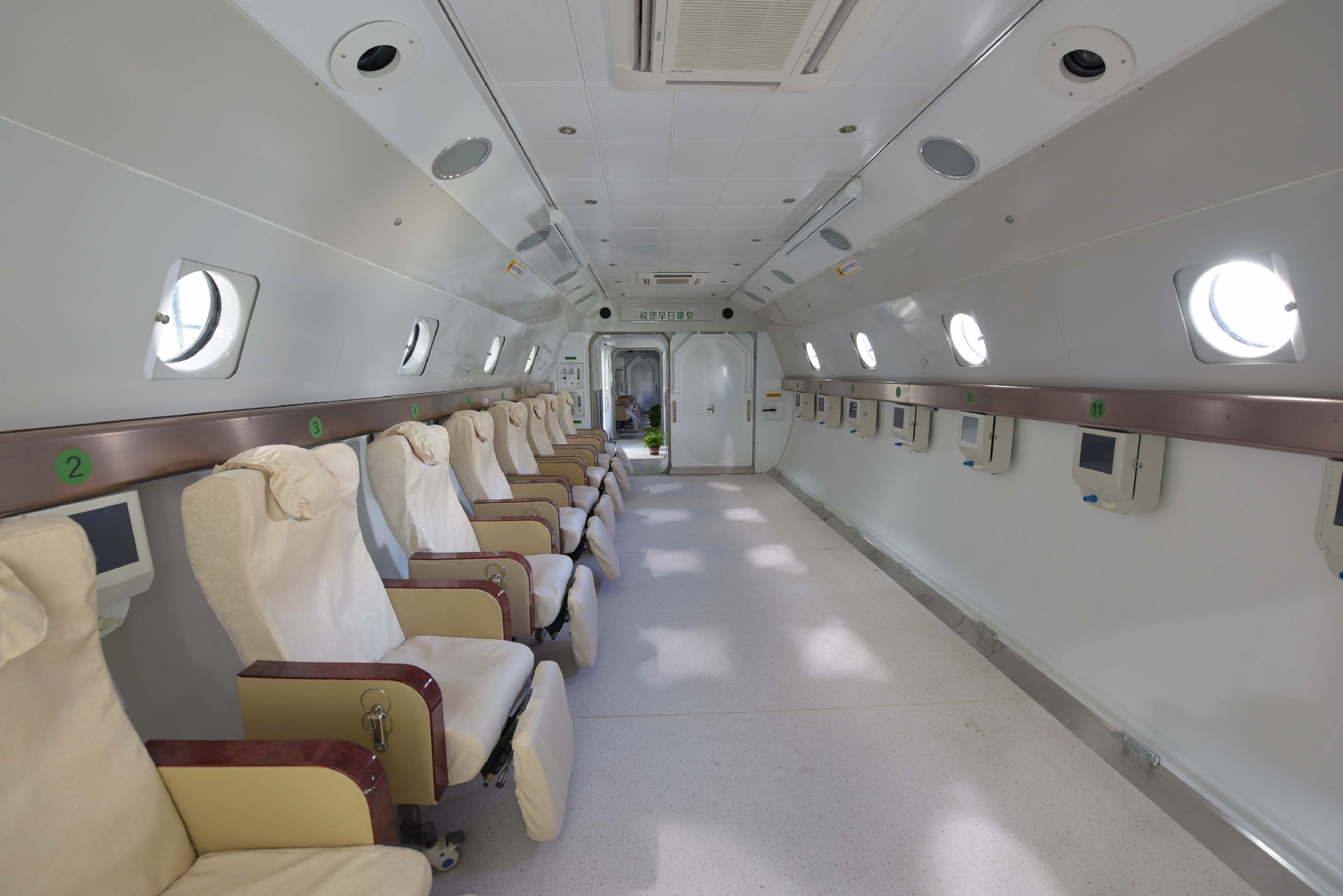

▲Chamber inner layout

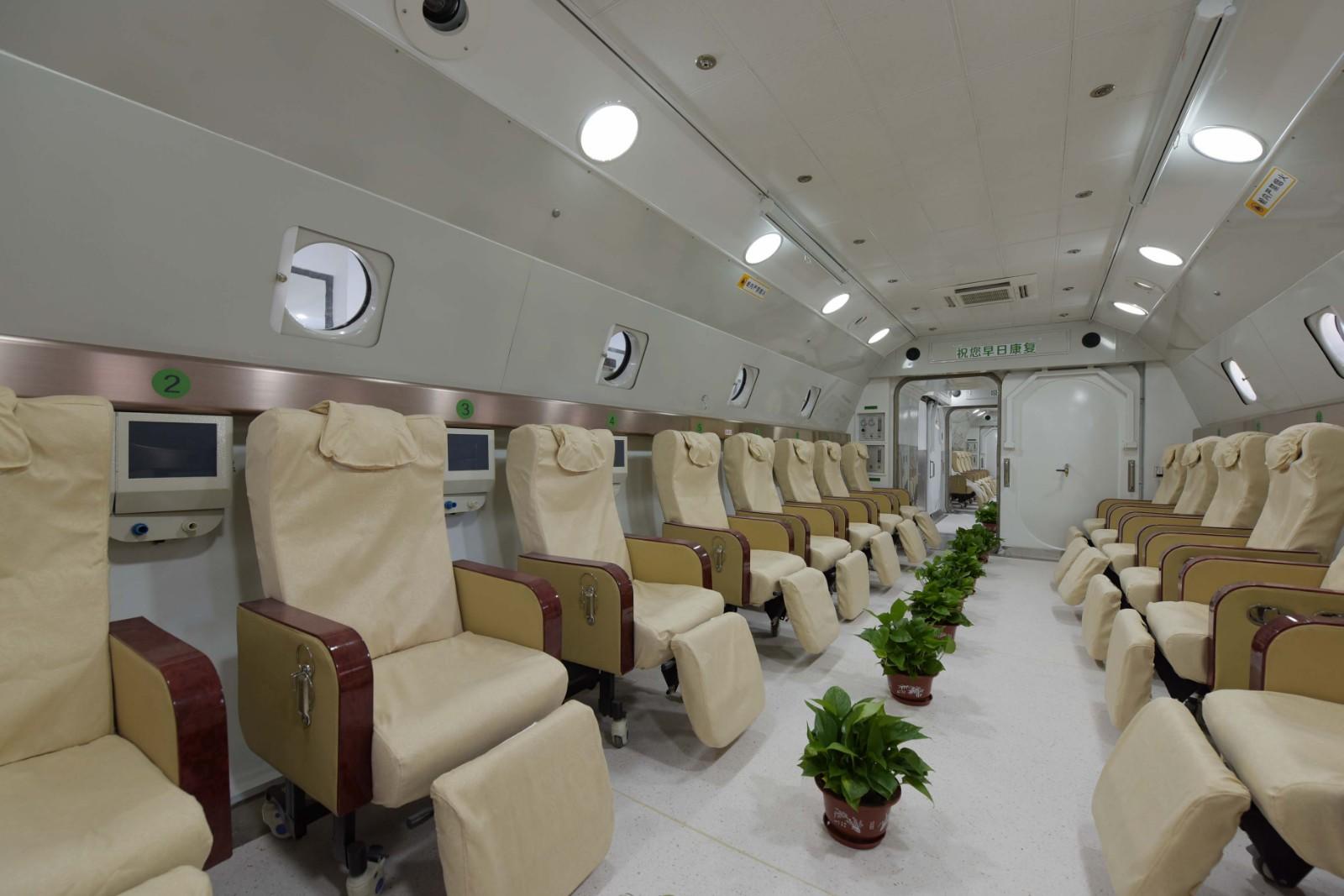

▲Chamber inner layout

General technical parameter of triple-cabin Omega chamber group
Type:GY3200M2-B1GY3200M2-B3GY3200M2-C5GY3400M2-E6GY3600M2-E6
Seating capacity:24 Persons26 Persons30 Persons36 Persons36 Persons

Max. working

pressure:

0.2Mpa

(3ATA)

0.2Mpa

(3ATA)

0.2Mpa

(3ATA)

0.2Mpa

(3ATA)

0.2Mpa

(3ATA)

Main cabin

capacity:

10 Persons12 Persons14 Persons16 Persons16 Persons

Assistant cabin

capacity:

10 Persons10 Persons12 Persons16 Persons16 Persons

Transition

cabin

 capacity:

4 Persons4 Persons4 Persons4 Persons4 Persons

Chamber

diameter:

φ3200mmφ3200mmφ3200mmφ3400mmφ3600mm
Chamber length:14600mm15600mm17600mm19600mm19600mm
Door:

1000x1900mm(6)

800×1780mm(1)

1000x1900mm

(7)

1000x1900mm

(7)

1000x1900mm

(7)

1000x1900mm

(7)

Operation

 method:

Manual +

electric +

 computer

Manual +

electric +

 computer

Manual +

electric +

 computer

Manual +

 electric +

 computer

Manual +

 electric +

 computer

Air compressor:

Twin screw

 silent type

(2)

Twin screw

 silent type

(2)

Twin screw

silent type

(2)

Twin screw

 silent type

(2)

Twin screw

 silent type

(2)



Air Pressure Transition Chamber
