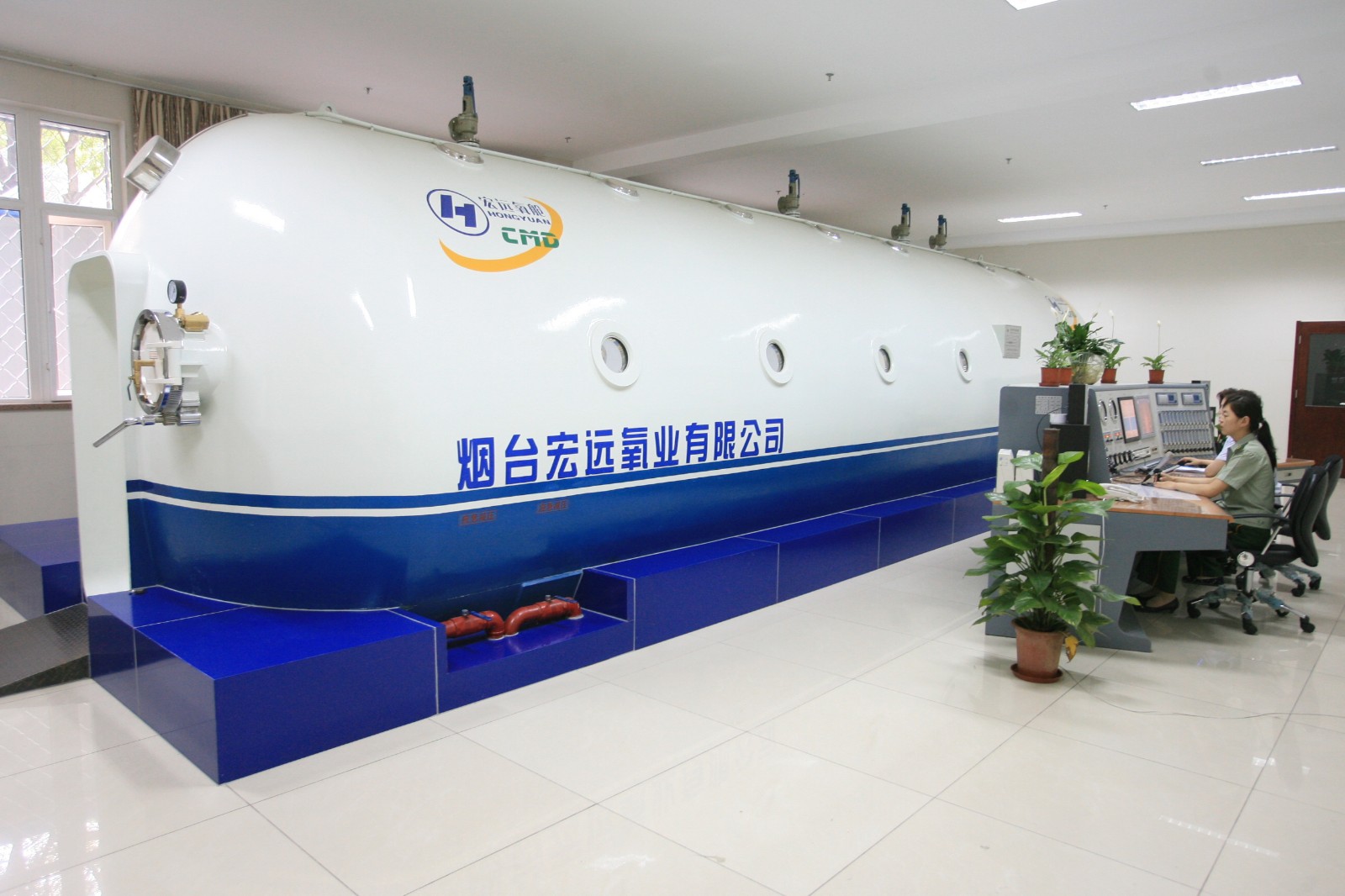

The circular oxygen chamber is a traditional oxygen chamber product, which is a mature product used in the oxygen chamber industry.

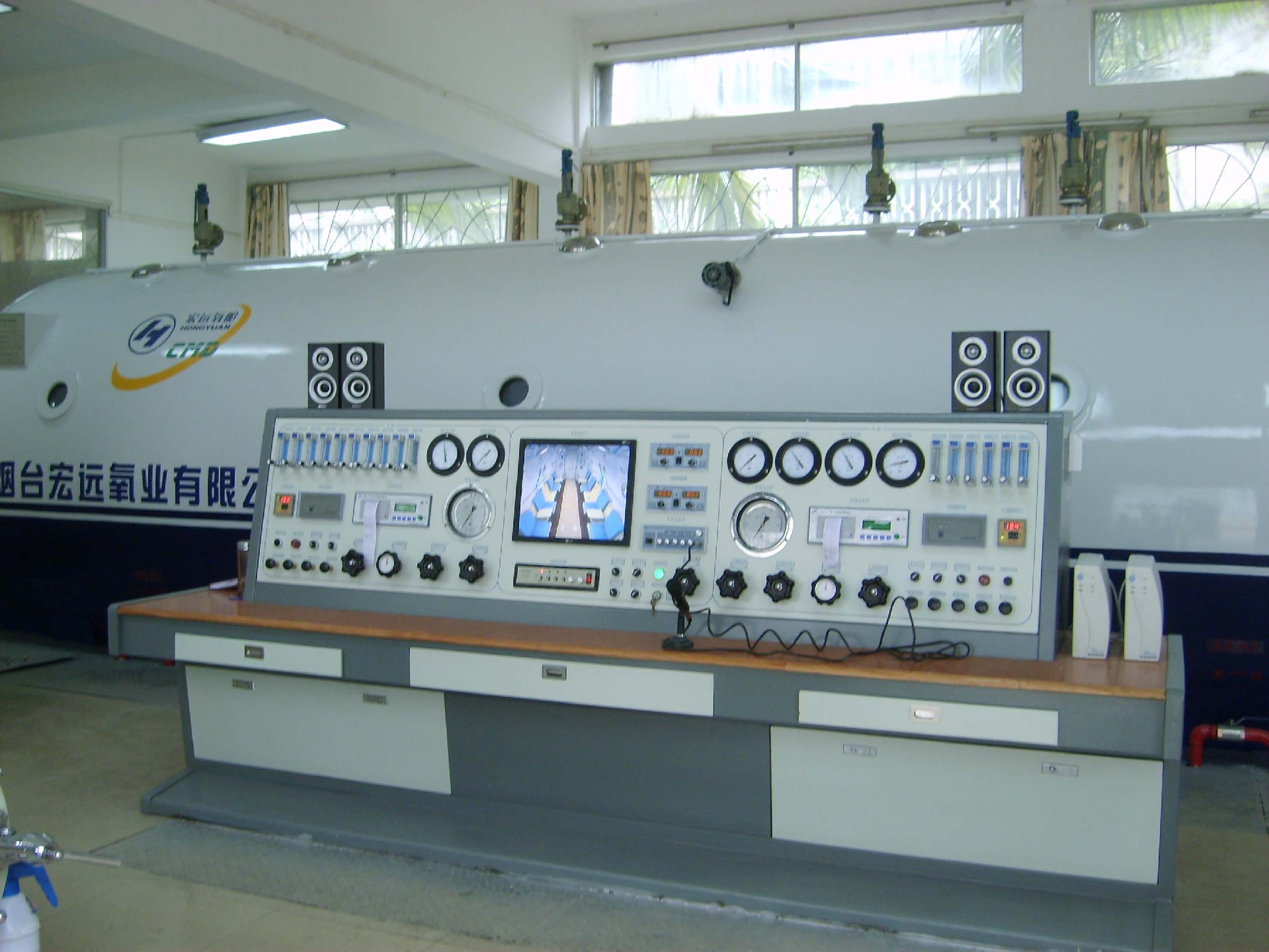

▲Operation console

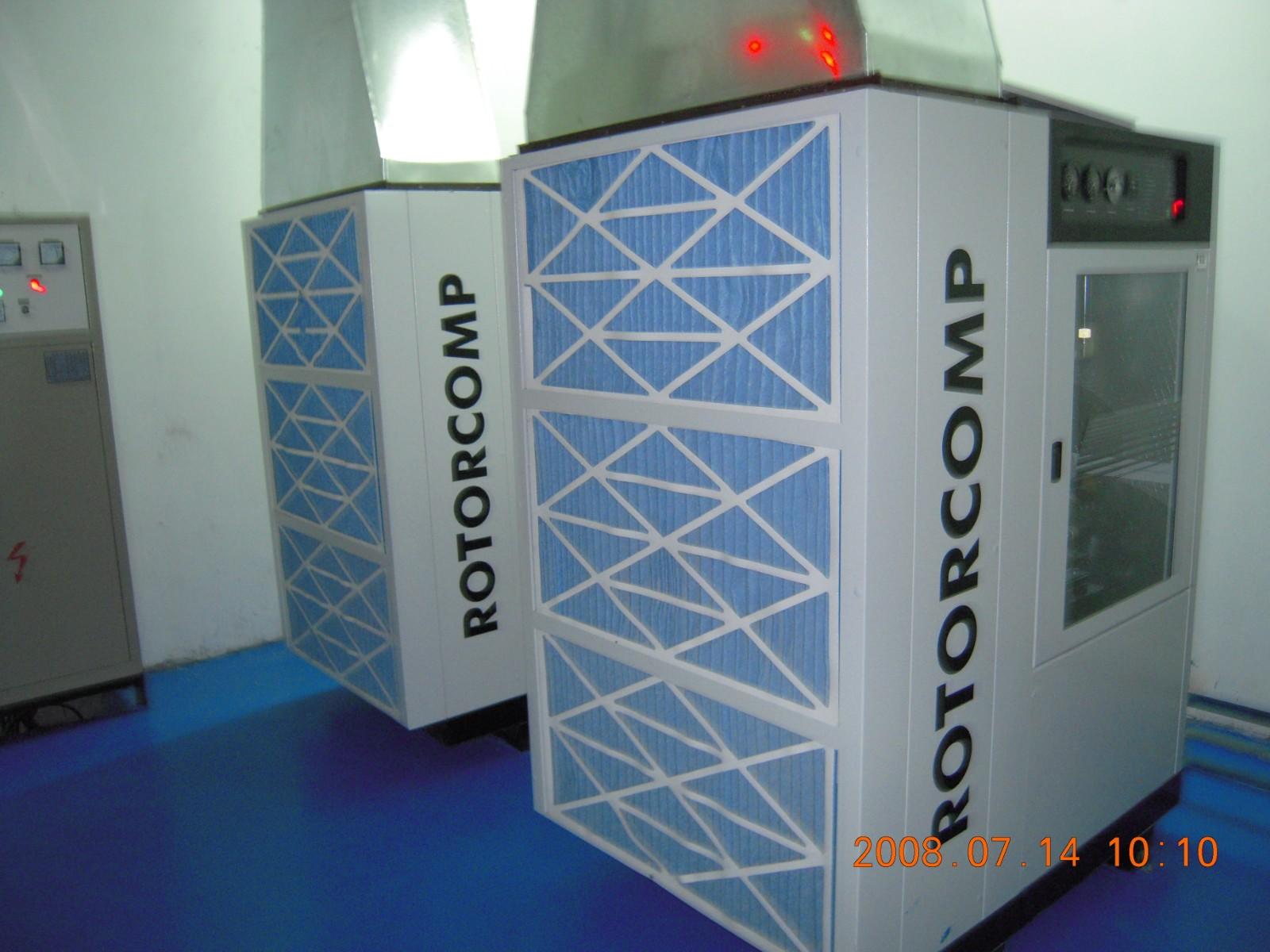

▲Air compressor
| General technical parameter of double-cabin Circular chamber | ||||||||
| Type： | GY2200D1 -B | GY2200D1 -D | GY2400D1 -A | GY2400D1 -B1 | GY2600D1 -A | GY2800D1 -B2 | GY3200D1 -C5 | GY3400D1 -D4 |
Seating capacity： | 6 Persons | 8 Persons | 8 Persons | 10 Persons | 12 Persons | 14 Persons | 16 Persons | 18 Persons |
Max. working pressure： | 0.2Mpa (3ATA) | 0.2Mpa (3ATA) | 0.2Mpa (3ATA) | 0.2Mpa (3ATA) | 0.2Mpa (3ATA) | 0.2Mpa (3ATA) | 0.2Mpa (3ATA) | 0.2Mpa (3ATA) |
Main cabin capacity： | 4 Persons | 6 Persons | 6 Persons | 8 Persons | 8 Persons | 10 Persons | 12 Persons | 14 Persons |
Transition cabin capacity： | 2 Persons | 2 Persons | 2 Persons | 2 Persons | 4 Persons | 4 Persons | 4 Persons | 4 Persons |
Chamber diameter： | φ2200mm | φ2200mm | φ2400mm | φ2400mm | φ2600mm | φ2800mm | φ3200mm | φ3400mm |
Chamber length： | 6000mm | 7200mm | 6500mm | 7200mm | 7500mm | 8500mm | 9000mm | 1000mm |
| Door： | 700x1400 mm(2)/ 700x1200 mm(2) | 700x1400 mm(2)/ 700x1200 mm(2) | 700x1400 mm(4) | 700x1400 mm(4) | 800x1600 mm(4) | 800x1700 mm(4) | 800x1780 mm(4) | 800x1780 mm(4) |
Operation method： | Manual + touch screen microco-mputer + computer (optional) | Manual + touch screen microco-mputer + computer (optional) | Manual + touch screen microco-mputer + computer (optional) | Manual + touch screen microco-mputer + computer (optional) | Manual + touch screen microco-mputer + computer (optional) | Manual + touch screen microco-mputer + computer | Manual + touch screen microco-mputer + computer | Manual + touch screen microco-mputer + computer |
Air compressor： | Box- type oil free(2) | Box- type oil free(2) | Twin screw silent type(2) | Twin screw silent type(2) | Twin screw silent type(2) | Twin screw silent type(2) | Twin screw silent type(2) | Twin screw silent type(2) |
